Xylon release automotive FMC board

LinkedIn +

Xylon has expanded its range of FMC expansion boards featuring high-speed serial links for FPGA based multi-camera automotive application development.

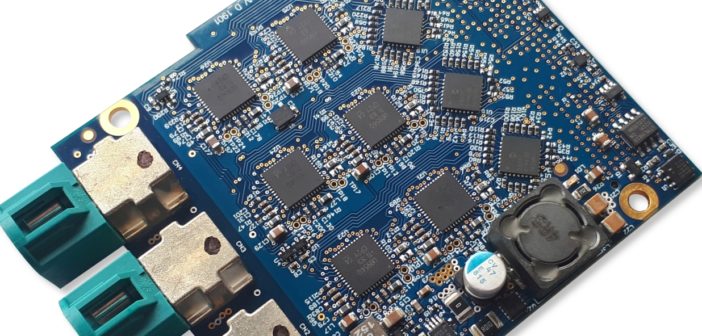

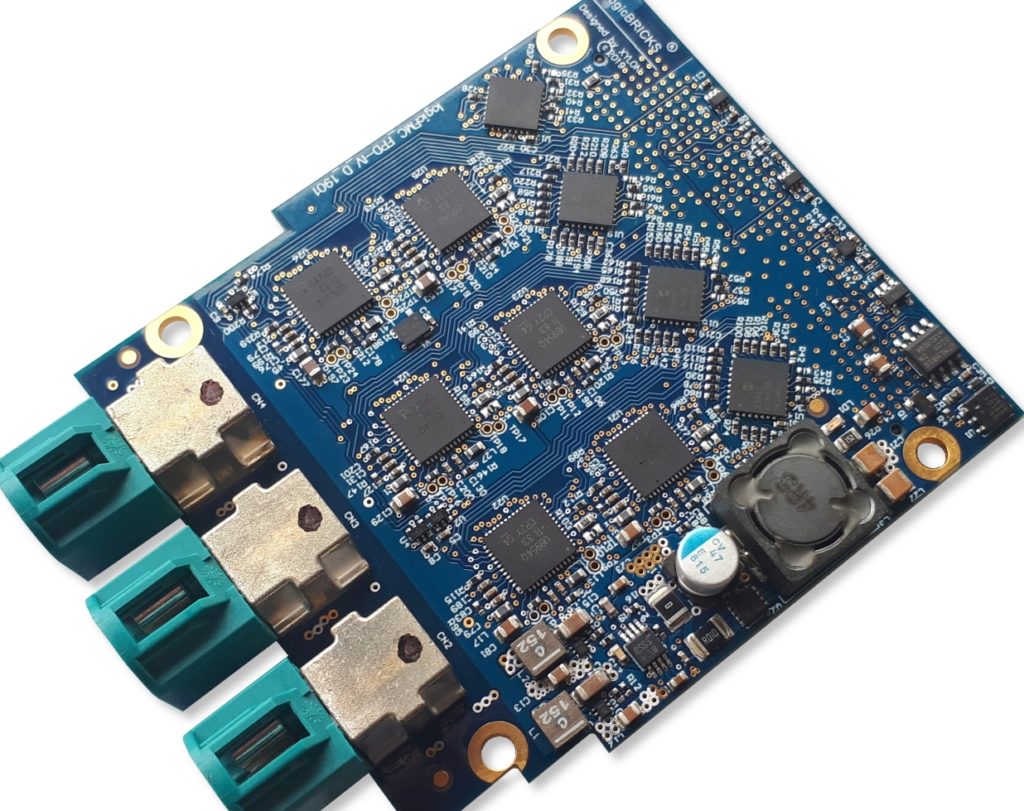

The logiFMC-FPD3-954 12-Channel FPD-Link III expansion board implements six TI DS90UB954-Q1 deserializers that pair with counterpart DS90UB953-Q1, DS90UB935-Q1, DS90UB933-Q1 and DS90UB913A-Q1 serializers from Texas Instruments. It is primarily designed to enable quick prototyping and evaluation of automotive multi-camera Advanced Driver Assistance (ADAS) and Autonomous Driving (AD) applications but can also be used in a variety of different non-automotive camera applications. The logiFMC-FPD3-954 FMC board enables easy interfacing of up to twelve video cameras to Xilinx FPGA, SoC, and MPSoC devices.

 Xylon’s logiFMC-FPD3-954 board features Rosenberger quad HFM High-Speed FAKRA-mini connectors that save installation space and enable four coax cable video connections per connector.

FPGA Mezzanine Cards (FMC) expansion boards are compliant with the VITA 57.1 FMC standard, and can be used with high pin count, as well as low pin count connectors. They can be used with the existing Xilinx programmable device-based evaluation kits with the FMC connector, such as Xilinx, Zynq, UltraScale+ and MPSoC evaluation kits, DRIVE-XA Automated Driving Development Platform or other Xilinx and third-party evaluation boards.
