Researchers at North Carolina State University have developed a new technique, MonoCon, that improves the ability of artificial intelligence (AI) programs to identify three-dimensional (3D) objects, and how those objects relate to each other in space, using two-dimensional (2D) images.

The work could help, for example, the AI used in autonomous vehicles navigate in relation to other vehicles using the 2D images it receives from an onboard camera.

“We live in a 3D world, but when you take a picture, it records that world in a 2D image,” explained Tianfu Wu, corresponding author of a paper on the work and an assistant professor of electrical and computer engineering at NC State.

“AI programs receive visual input from cameras,” he continued. “So if we want AI to interact with the world, we need to ensure that it is able to interpret what 2D images can tell it about 3D space. In this research, we are focused on one part of that challenge: how we can get AI to accurately recognize 3D objects – such as people or cars – in 2D images, and place those objects in space.”

Greater redundancy

While the work may be important for autonomous vehicles, it also has applications for manufacturing and robotics. In the context of autonomous vehicles, most existing systems rely on lidar – which uses lasers to measure distance – to navigate 3D space. However, lidar technology is expensive. And because lidar is expensive, autonomous systems don’t include much redundancy. For example, it would be too expensive to put dozens of lidar sensors on a mass-produced driverless car.

“But if an autonomous vehicle could use visual inputs to navigate through space, you could build in redundancy,” added Wu. “Because cameras are significantly less expensive than lidar, it would be economically feasible to include additional cameras – building redundancy into the system and making it both safer and more robust. That’s one practical application. However, we’re also excited about the fundamental advance of this work: that it is possible to get 3D data from 2D objects.”

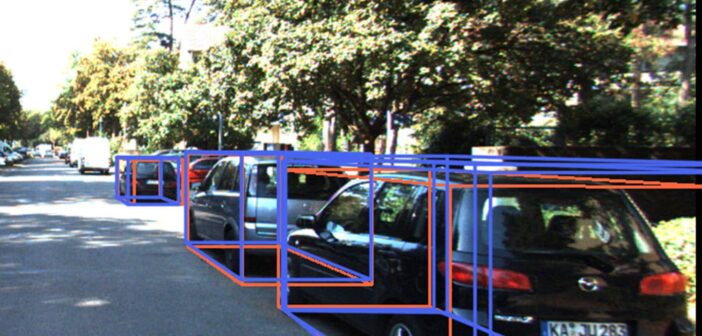

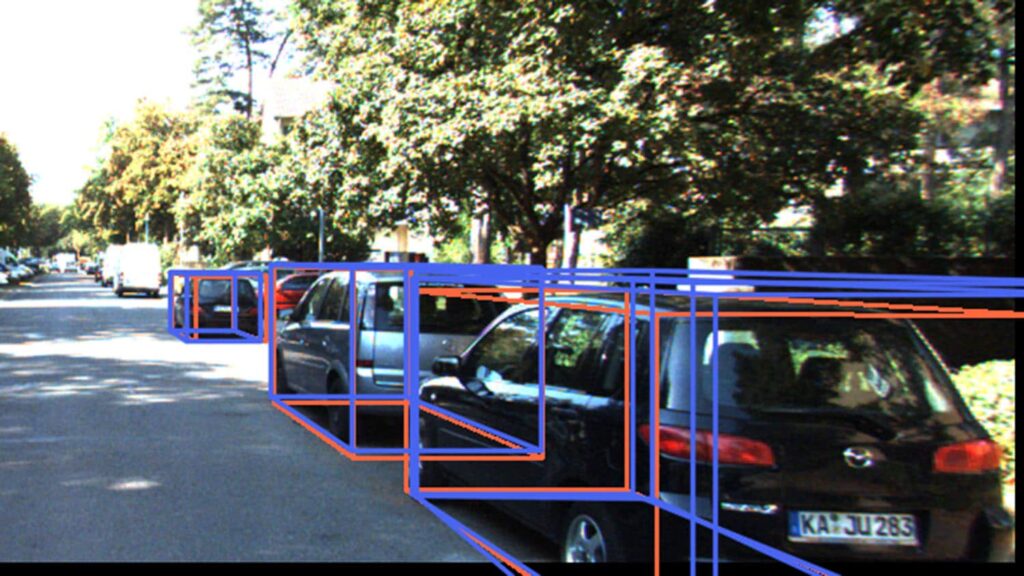

Specifically, MonoCon is capable of identifying 3D objects in 2D images and placing them in a ‘bounding box’, which effectively tells the AI the outermost edges of the relevant object.

MonoCon builds on a substantial amount of existing work aimed at helping AI programs extract 3D data from 2D images. Many of these efforts train the AI by ‘showing’ it 2D images and placing 3D bounding boxes around objects in the image. These boxes are cuboids, which have eight points – think of the corners on a shoebox.

During training, the AI is given 3D coordinates for each of the box’s eight corners, so that the AI ‘understands’ the height, width and length of the bounding box, as well as the distance between each of those corners and the camera. The training technique uses this to teach the AI how to estimate the dimensions of each bounding box and instructs the AI to predict the distance between the camera and the car. After each prediction, the trainers ‘correct’ the AI, giving it the correct answers. Over time, this enables the AI to get better and better at identifying objects, placing them in a bounding box, and estimating the dimensions of the objects.

“What sets our work apart is how we train the AI, which builds on previous training techniques,” said Wu. “Like the previous efforts, we place objects in 3D bounding boxes while training the AI. However, in addition to asking the AI to predict the camera-to-object distance and the dimensions of the bounding boxes, we also ask the AI to predict the locations of each of the box’s eight points and its distance from the center of the bounding box in two dimensions. We call this ‘auxiliary context’, and we found that it helps the AI more accurately identify and predict 3D objects based on 2D images. The proposed method is motivated by a well-known theorem in measure theory, the Cramér–Wold theorem. It is also potentially applicable to other structured-output prediction tasks in computer vision.

The researchers tested MonoCon using a widely used benchmark data set called KITTI.

“At the time we submitted this paper, MonoCon performed better than any of the dozens of other AI programs aimed at extracting 3D data on automobiles from 2D images,” said Wu. MonoCon performed well at identifying pedestrians and bicycles, but was not the best AI program at those identification tasks.

“Moving forward, we are scaling this up and working with larger data sets to evaluate and fine-tune MonoCon for use in autonomous driving,” Wu continued. “We also want to explore applications in manufacturing, to see if we can improve the performance of tasks such as the use of robotic arms.”

The paper, Learning Auxiliary Monocular Contexts Helps Monocular 3D Object Detection, will be presented at the Association for the Advancement of Artificial Intelligence 2022 Conference on Artificial Intelligence, being held virtually from February 22 to March 1. First author of the paper is Xienpeng Liu, a PhD student at NC State. The paper was co-authored by Nan Xue of Wuhan University.

The work was done with support from the National Science Foundation, under grants 1909644, 1822477, 2024688 and 2013451; the Army Research Office, under grant W911NF1810295; and the US Department of Health and Human Services, Administration for Community Living, under grant 90IFDV0017-01-00.
